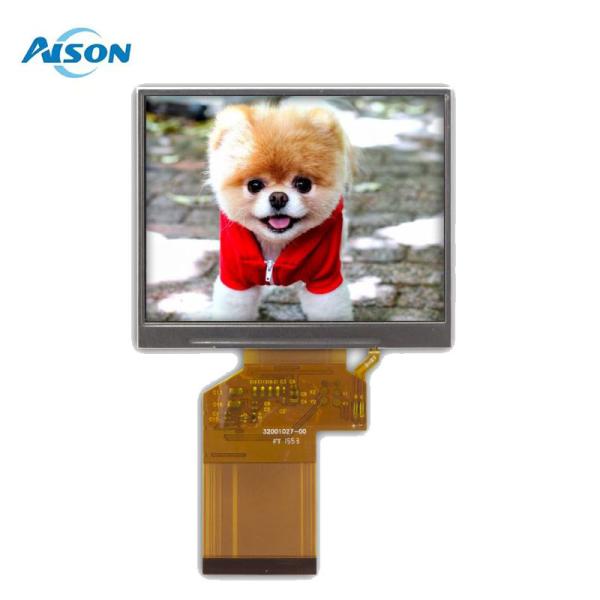

3.5 Inch TFT LCD Module 54 Pin LCD Display 320x240 Resolution RGB Interface

Name: 35 Inch TFT LCD Module 54 Pin LCD Display 320x240 Resolution RGB Interface
Brand: AISON
Price: 10 USD

Cheap 3.5 Inch TFT LCD Module 54 Pin LCD Display 320x240 Resolution RGB Interface for sale

Brand Name : AISON

Model Number : Z035NC111

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : 10~15usd/pc

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 200k/month

Delivery Time : 7 working days

Packaging Details : Carton/Blister

Display Name : 3.5 inch 320x240 LCD Module

Dot arrangement : 320x240

Outline dimension : 76.90*63.9*3.26mm

Active area : 70.08 x 52.56mm

Interface : 24 Bit RGB

Viewing Direction : 12 O'clock

Operating temp : -20 to 70 degree

Storage temp : -30 to 80 degree

Driver IC : HX8238D

Contact Now

3.5 Inch LCD Module 320X240 Resolution RGB Interface 54 PIN

Display General Description

The Z035NC111 is a 3.5-inch TFT LCD Display Module that combines advanced display technology with a transmissive-type color active matrix TFT LCD, delivering exceptional image quality and performance. Designed with precision, this module shares identical dimensions and active area (AA) with the Z035NC111 model. Specifically, the module measures 76.90*63.9*3.26mm, while the active area (AA) is 70.08 × 52.56 mm.

This 3.5-inch TFT LCD Module features a resolution of 320 × 240 pixels, a superior brightness of 350 cd/m², and an impressive contrast ratio of 300:1, ensuring vibrant and clear visuals for a wide range of applications.

General Data

Product Name	3.5 inch LCD Module
Number of Pixel	320x240
Interface	RGB
Luminance(cd/m2)	350cd/m2
Active area	70.08 x 52.56mm
LCM (W x H x D)	76.9063.93.26mm
Viewing Direction(eye)	12 O'clock
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing
3.5 Inch TFT LCD Module 54 Pin LCD Display 320x240 Resolution RGB Interface

Product Details

3.5 Inch TFT LCD Module 54 Pin LCD Display 320x240 Resolution RGB Interface

TFT Applications

This 3.5 inch 320x240 tft display is suitable for industrial control, medical equipment, and consumer electronics applications.

3.5 Inch TFT LCD Module 54 Pin LCD Display 320x240 Resolution RGB Interface
